Location: HOME - PRODUCT - Tractor Truck - SHACMAN F3000 6×4 Trailer Truck

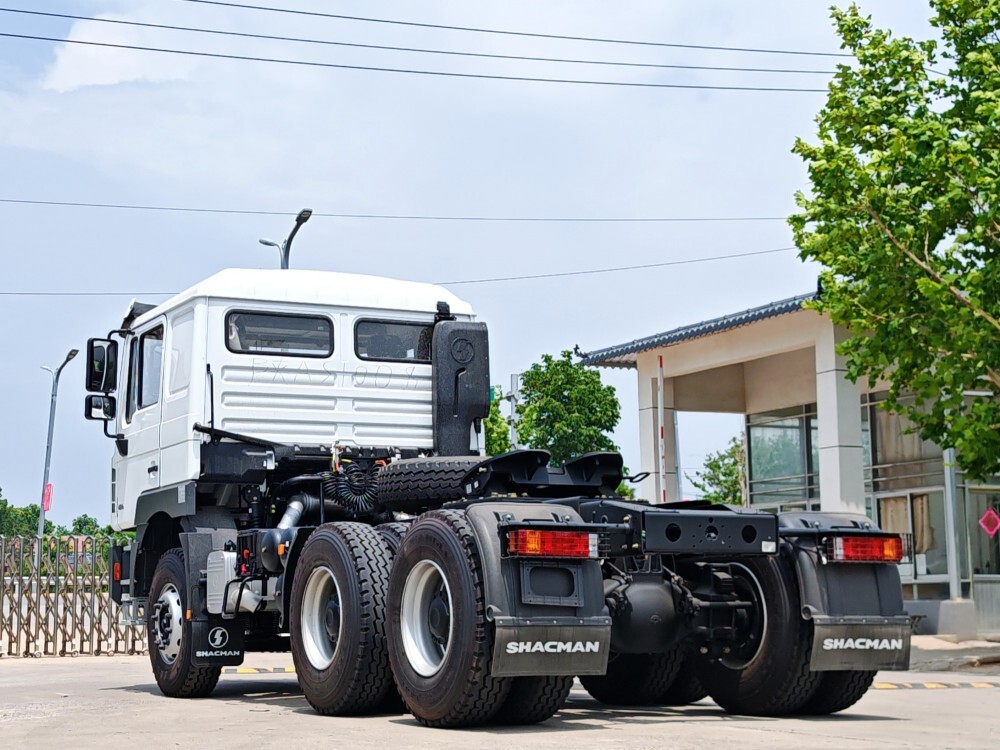

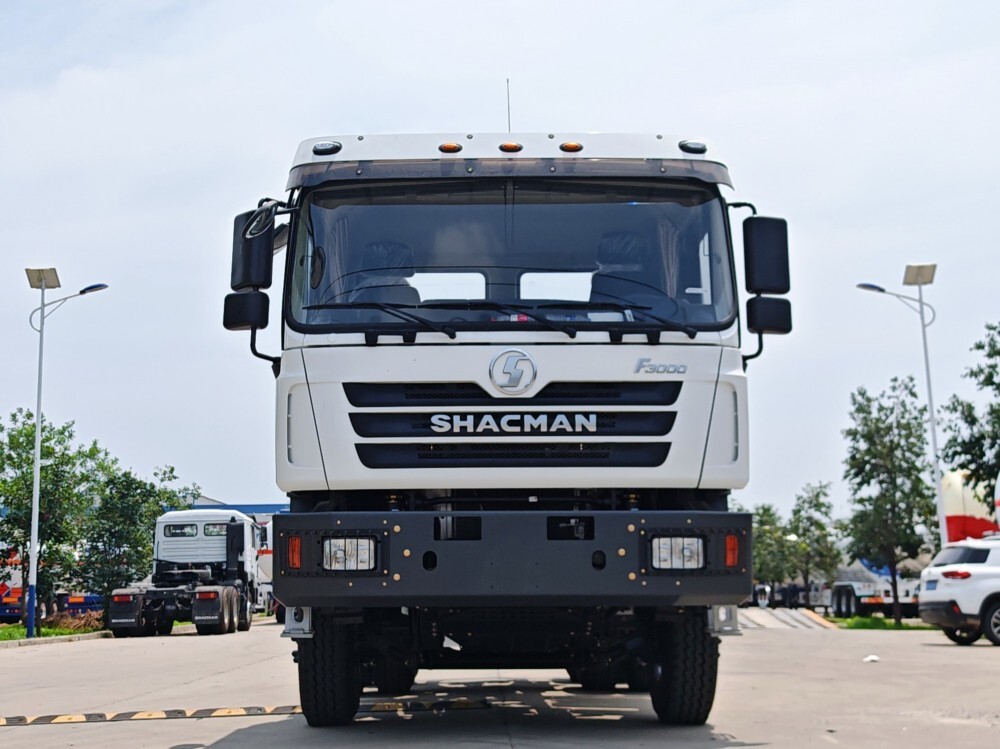

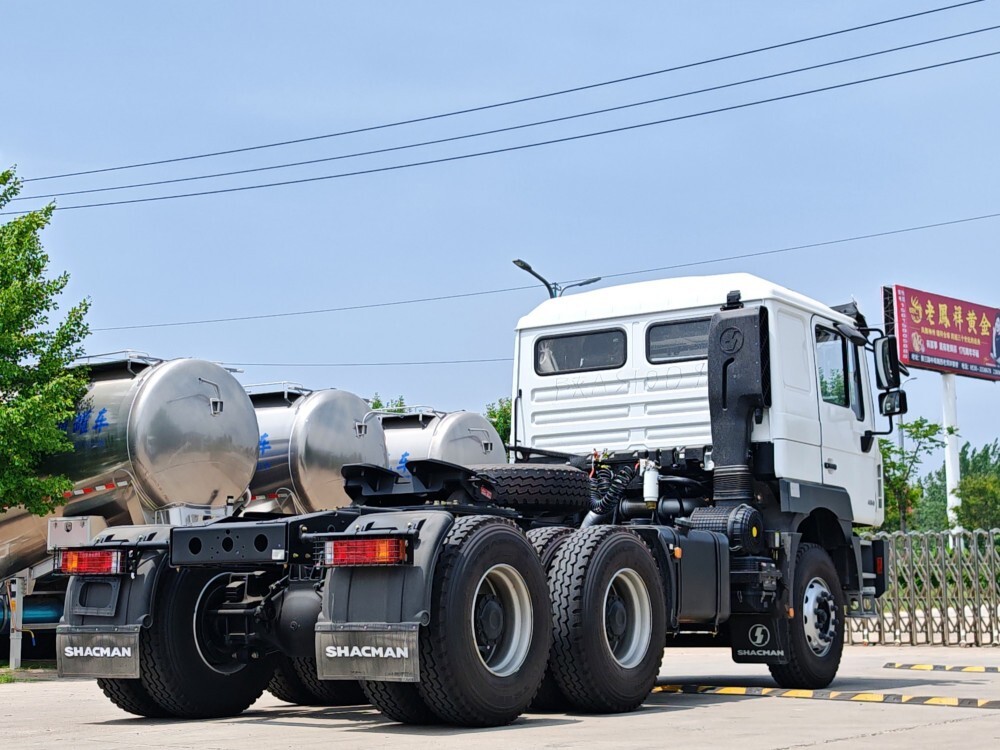

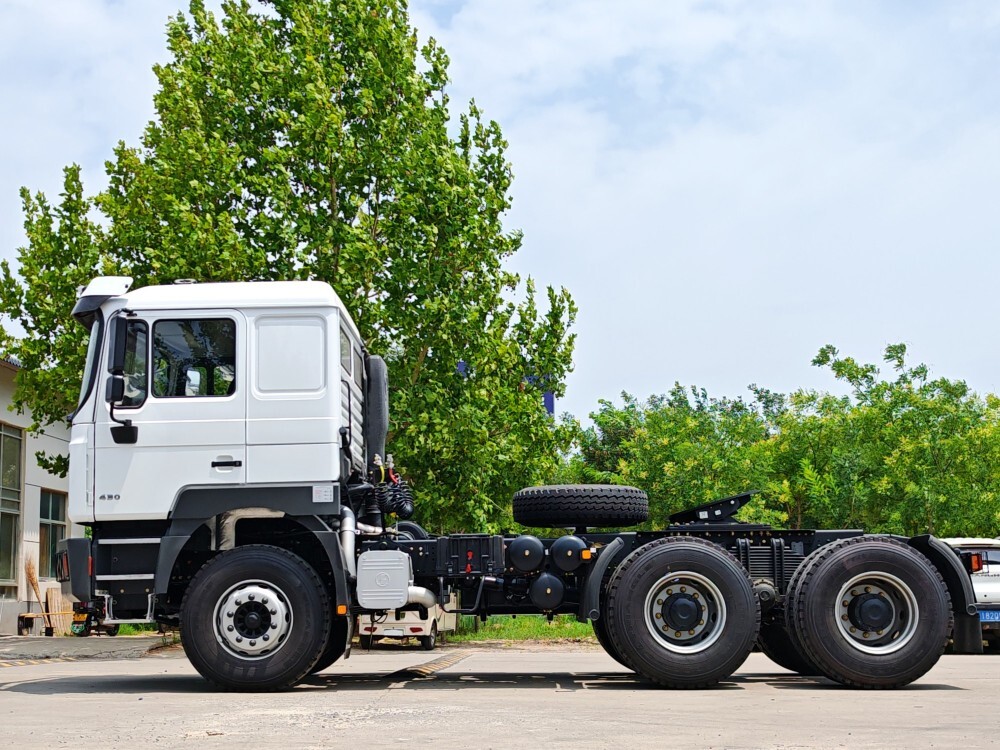

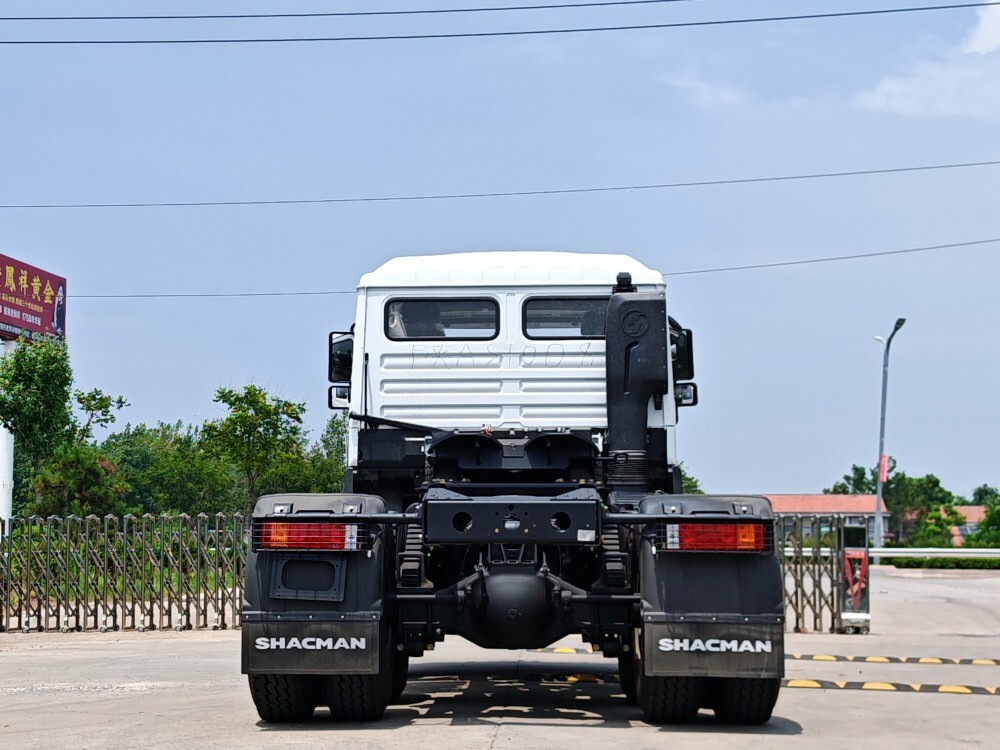

SHACMAN F3000 6×4 Trailer Truck

Name: SHACMAN F3000 6×4 Trailer Truck
SKU: 0

WhatsApp: 008613385325337

E-mai: sales@globalshacman.com

Message

download product manual

Specifications

Product Details

1. Ore transportation (bauxite, iron ore, etc., super-strong version ≤ 120t, reinforced GCW version ≤ 90t, unpaved road main transportation distance ≤ 150km, full load speed 40-60km/h)

1.1 F3000 Super Edition Tractor Truck/6×4

Serial number

Basic Configuration

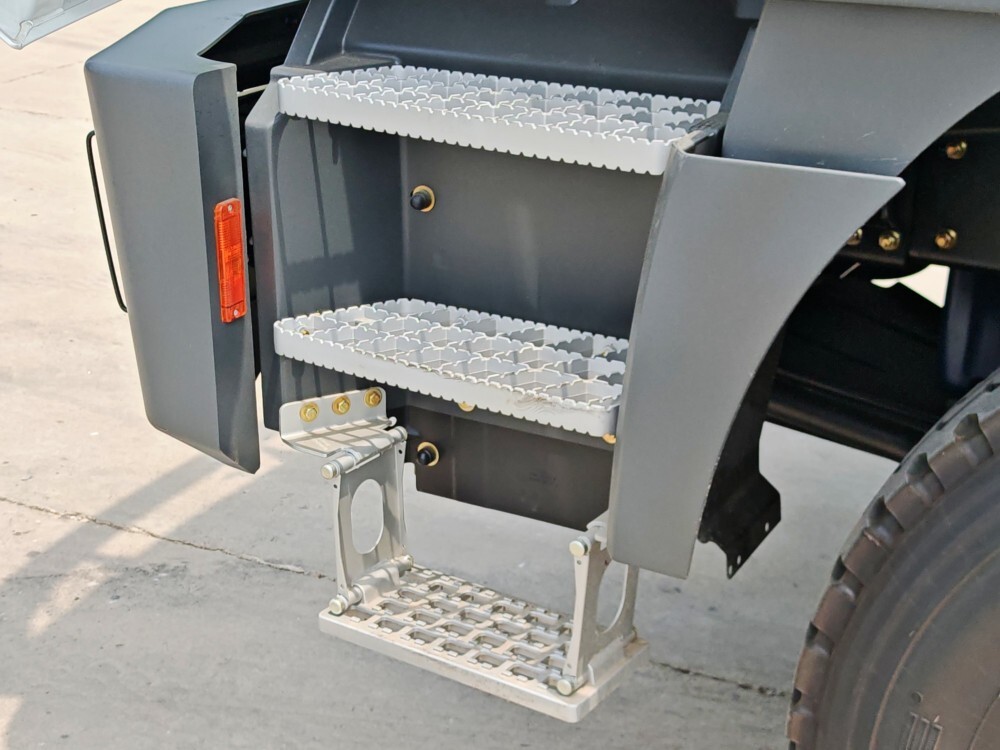

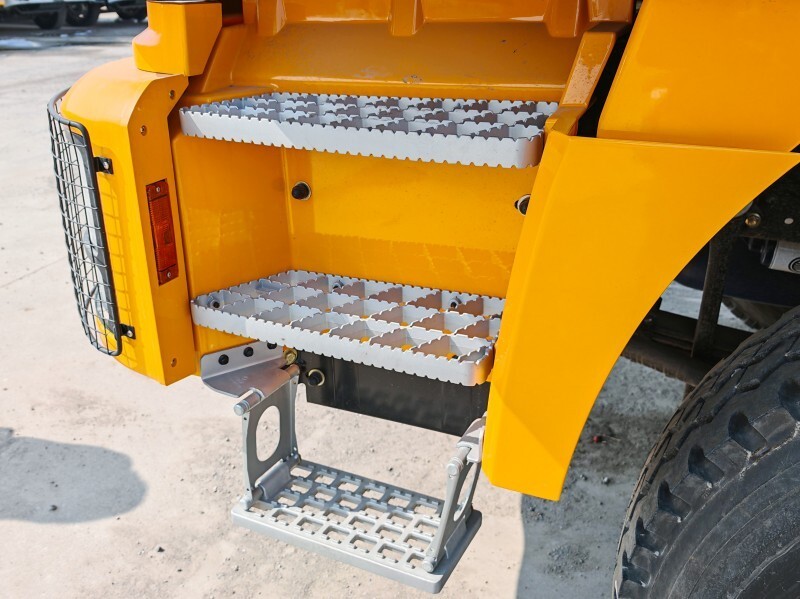

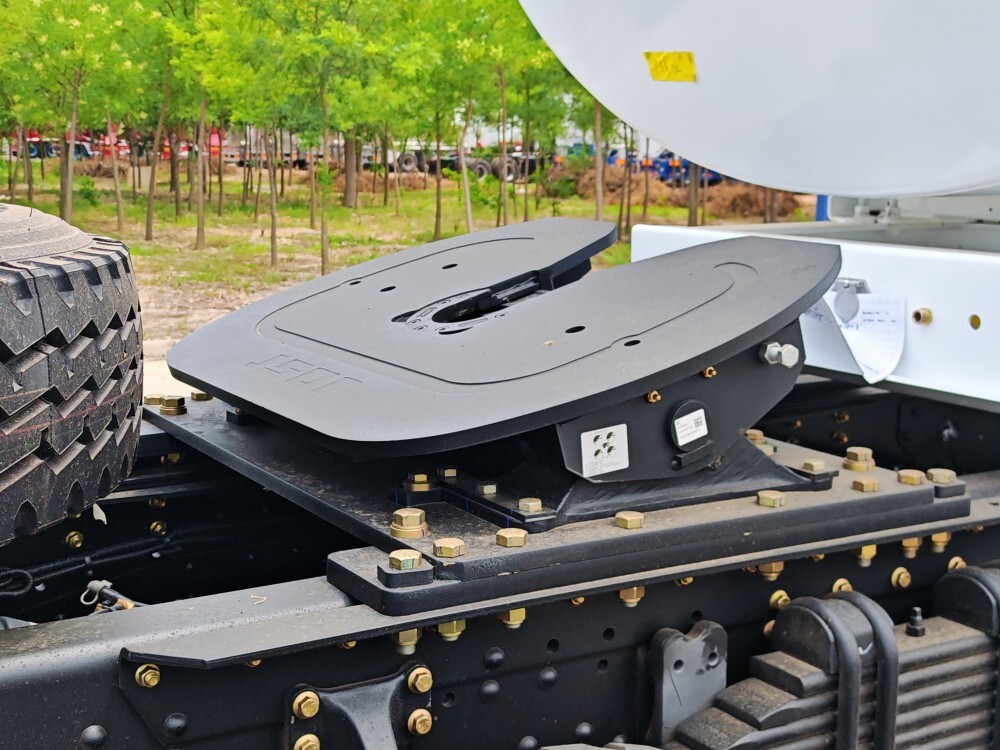

F3000 extended flat-top cab without roof deflector, hydraulic main seat, standard rearview mirror, single air conditioning, manual window regulator, manual flip, steel bumper, three-stage boarding step, oil bath air filter, standard exhaust, oil pan protection grille, reinforced JOST 90 saddle (JSK39DV1-46), split fenders, taillight protection grille, 165Ah maintenance-free battery

Basic model DH

Optional configuration

Applicable working conditions

One country, one book configuration

Four-point hydraulic suspension, fender and muffler casting bracket, 2 hazard warning lights, SHACMAN logo, full English logo, iron gas tank, 9.0 rims, 32T jack, 2KG fire extinguisher, reversing buzzer, telescopic axle control, fuel system anti-theft, battery box anti-theft, installation of a long-term coarse filter, bumper reserved for the installation of LED headlights, X3000 air intake flat pipe, economy version vehicle tool box, cab left and right sound insulation panels

Optional configuration

12JSD200T-B+QH50 flange, 12JSD200T-B+QH50 spline, 13R22.5, (400L+230L) aluminum alloy fuel tank, reinforced 90 saddle, air main seat, Super Edition optional package 1, three-stage integrated fenders, domestic four-channel ABS, standard heater, Shacman Telematics (terminal only)

platform

Drive type

Version

Design car model

engine

transmission

Axle speed ratio

Frame (mm)

Wheelbase (mm)

Frame rear overhang (mm)

cab

front axle

Suspension

tank

tire

Material Code

model

Horsepower (PS)

emission

Type of transport

Use road surface

Total vehicle mass (t)

Economic speed/maximum speed (km/h)

F3000

6×4

Super Edition

SX4255JV324

WP12.430E201

430

Euro II

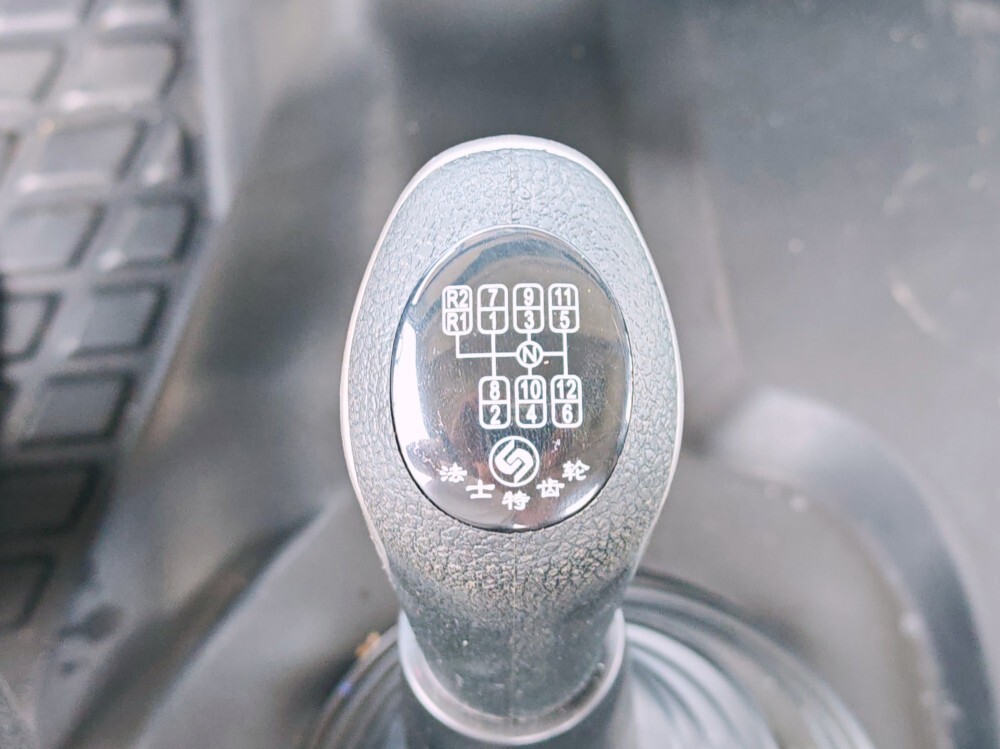

12JSD200T-B

16T HD dual-stage 5.92

850×300 (8+7)

3175+1400

725

Extended flat top

HD 9.5T

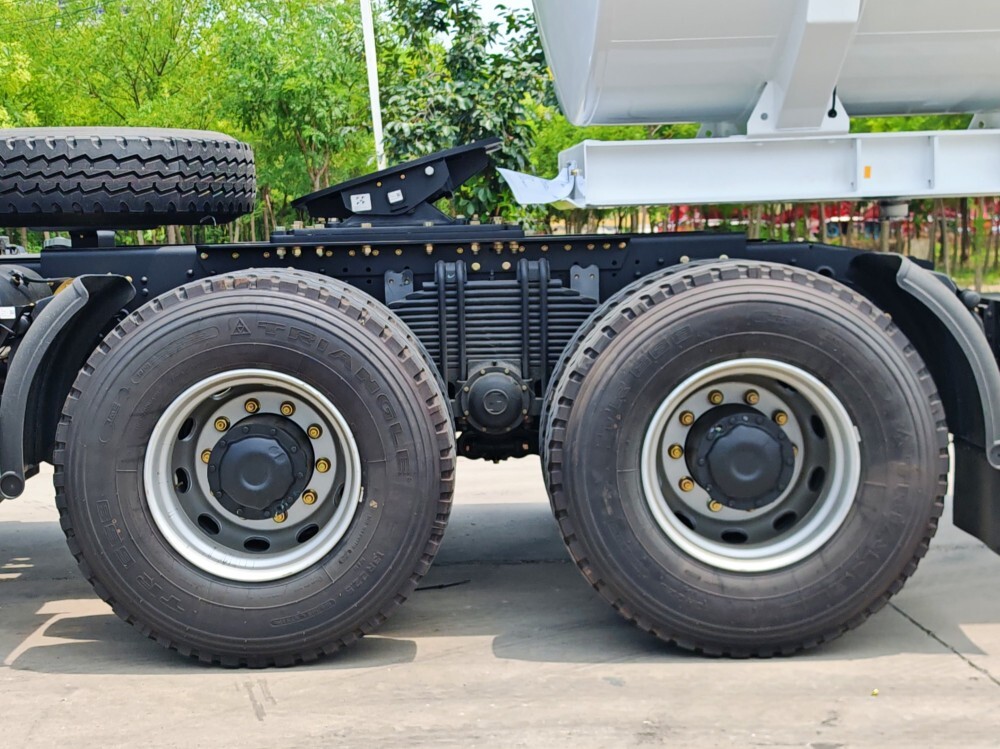

Front and rear multi-leaf springs with four main leaves and four riding horses

380L iron fuel tank

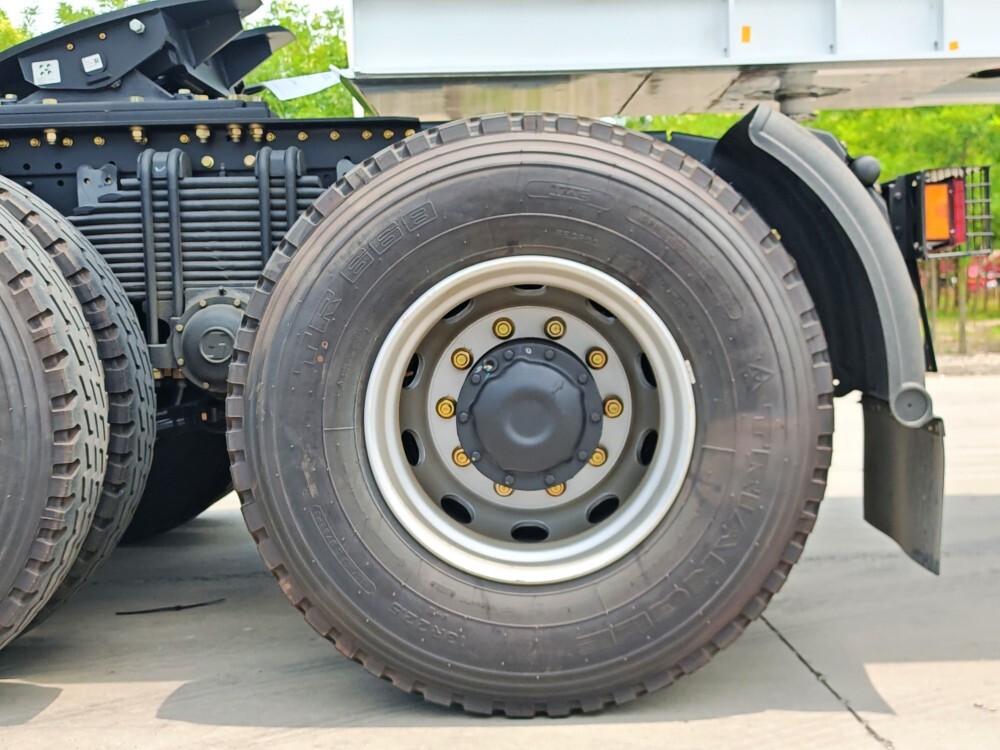

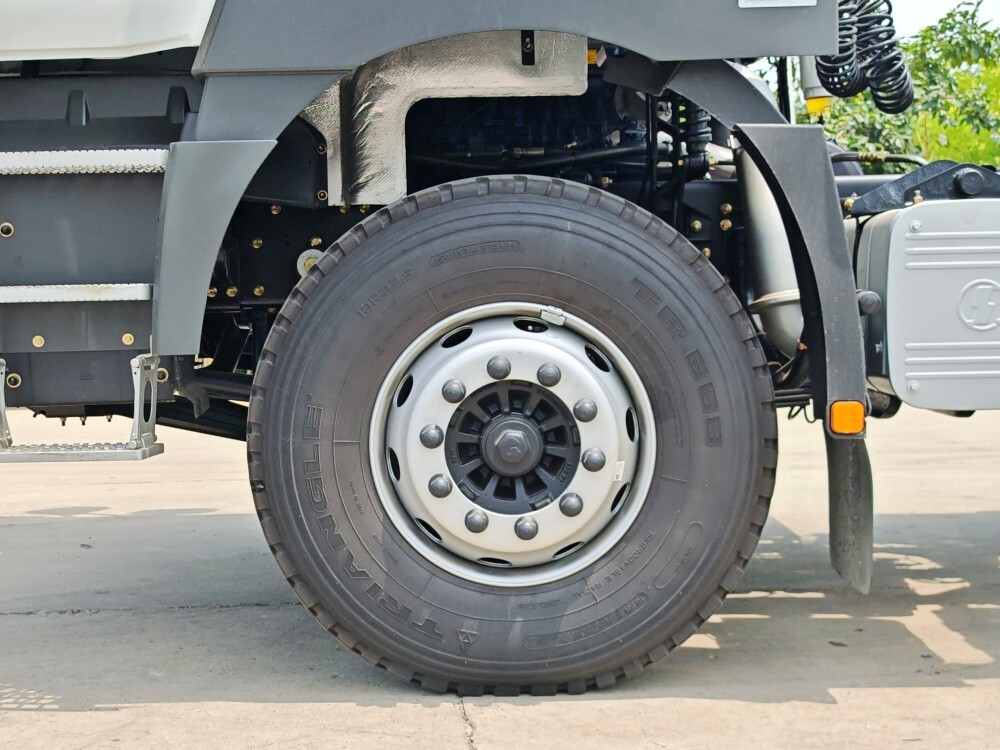

12.00R20 mixed pattern

DH952542H08T5

12JSD200T-B+QH50 flange

Overload

National and provincial highways

90～120

50～70/90 (rear axle speed ratio 4.266)

12JSD200T-B+QH50 spline

(400L+230L) aluminum alloy fuel tank

Reinforced 90 saddle

45～65/85 (rear axle speed ratio 4.769)

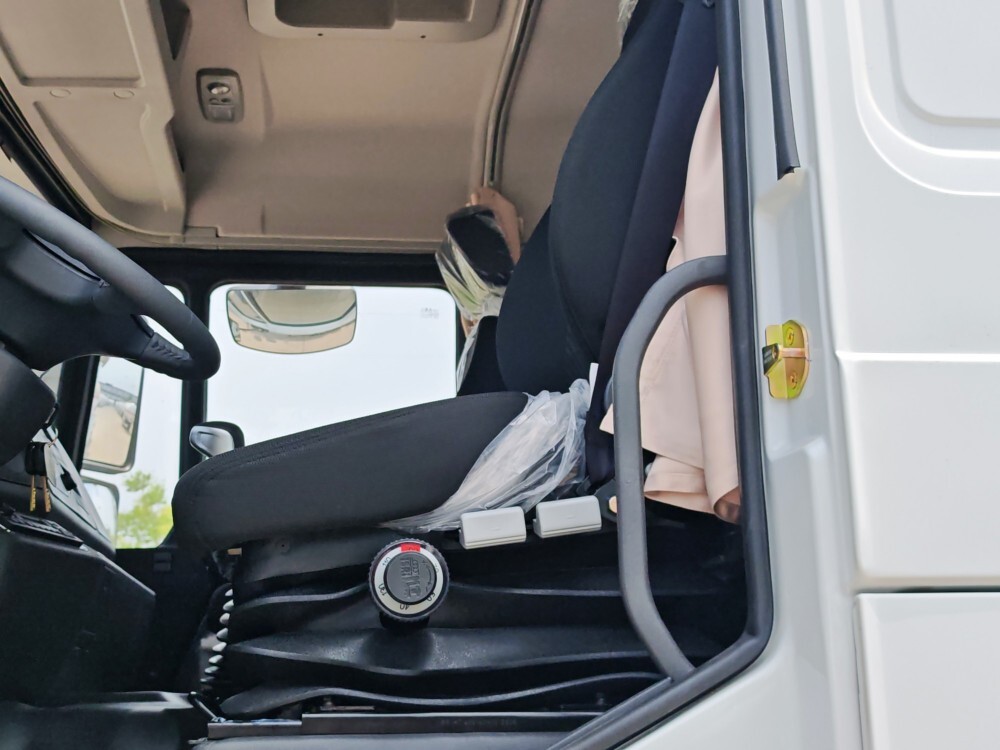

Air main seat

Super Edition Optional Package 1

Three-section integrated fender

35～50/65 (rear axle speed ratio 5.92)

Domestic four-channel ABS

Normal warm air

Shacman Telematics (terminal only)

Tough as steel

Launched in 2009, the F3000 series has established itself as a paragon of reliability in the heavy-duty truck industry. Engineered with technology derived from MAN, the F3000 series exemplifies a harmonious blend of robustness and power, designed to meet and exceed the rigorous demands of any task. Its unwavering performance in the most challenging environments underscores its reputation as a dependable workhorse.

Withstand the test of time

Launched in 2009, the F3000 series has established itself as a paragon of reliability in the heavy-duty truck industry. Engineered with the most reliable technologies, the F3000 series exemplifies a harmonious blend of robustness and power, designed to meet and exceed the rigorous demands of any task. Its unwavering performance in the most challenging environments underscores its reputation as a dependable workhorse.

Perfect for any project

The F3000's resilience is matched by its adaptability, proving to be the quintessential asset for overseas engineering projects. With a formidable presence in the international market, it has garnered an unparalleled volume of sales, a testament to its global acceptance and preference. The F3000 series is not just a vehicle; it’s a trusted partner, delivering consistent performance that has captivated operators worldwide.

Go where never before

Its versatility is evident in its ability to navigate diverse terrains with ease, whether it’s long-distance hauls or navigating through adverse road conditions. The F3000 series stands as a beacon of toughness, capable of carrying substantial payloads, which is why it remains the top choice for professionals seeking a reliable and rugged solution for their transportation needs.

No surface is too rough
